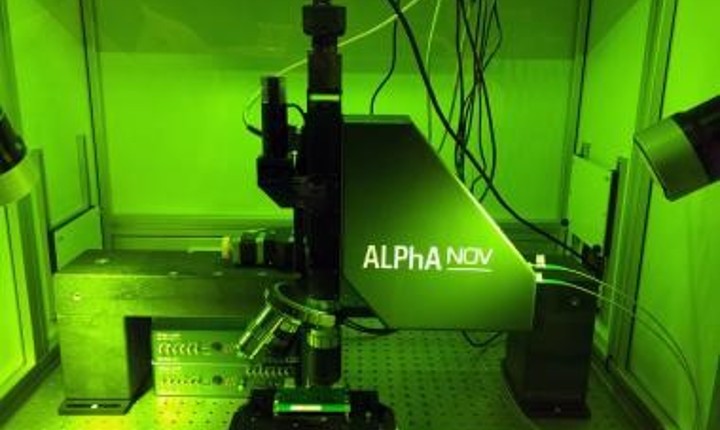

Alphanov Four-Spot Laser Injection Bench for Integrated Circuits Attack

Equipment :

• Injection sources

• Four independent single-mode PDM (Pulse-on-Demand Module) laser sources
• Wavelengths 980 and 1064 nm (2 sources each)
• Minimum spot size 1 µm
• Min pulse width 1 ns
• Repetition rate 250 MHz

• Visualisation system

• Minimum spot size 1 µm
• IR and visible
• High-resolution InGaAs camera (900 - 1700 nm)
• Interchangeable lens turret: x2.5, x20 and x50 magnifications

• ProScan III: Prior Scientific 3-axis motion table, 1μm resolution
